Warm Edge Insulating Glass Unit for Architecture &Refrigeration
With advanced production line, we manufacture warm edge spacer insulating glass unit, double &triple & curved insulating glass units,which have been widely used for architecture and commerical refrigeration.
Specification:
Maximum size: 3660*2440mm
Minimum size: 300*300mm
Insulating glass thickness range: 10-60mm
Flat glass thickness range:4-19mm
Spacers: 6.4mm, 9.5mm, 12.7mm, 14.3mm,15.9mm,
Second sealing: hot melt butyl sealant
Gas: argon
Low-E glass available also.
The most common configuration of IG units for commercial building is a 6 mm lite, 12mm of air space and a 6mm lite.
Applications:

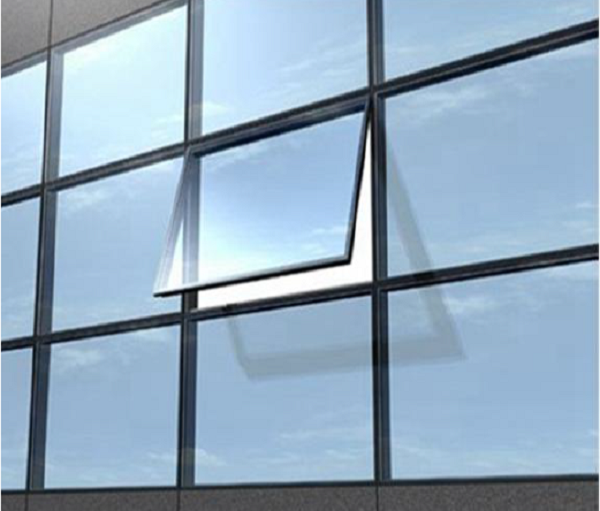

The insulating glass unit is widely used in glass curtain walls, doors, windows and area with glass in automobile, ships, aircrafts, instruments,and Refrigerator freezer
All of our insulated glass panels have high performance WARM EDGE Technology–superspacer of Quanex is Energy star product.
What is warm edge technology and what is the super performance on energy-saving than metal spacer (aluminum spacer)?
Different from traditional metal edge, the spacer is without metal, we call it warm edge. Well, when we choose insulated glass units, coefficient of heat transfer and glass durability become main factors to be considered.

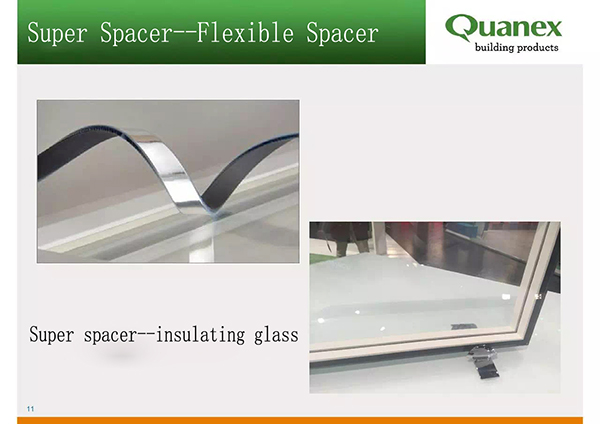

Super spacer has really super performance on both factors. Super Spacer is a true dual seal warm edge spacer system that uses a high-performance acrylic adhesive for its structural seal, backed by a moisture vapor seal. It is the true warm spacer without any metal but with desiccant. You can get more details from https://www.youtube.com/watch?v=kPCK2_tr4G0

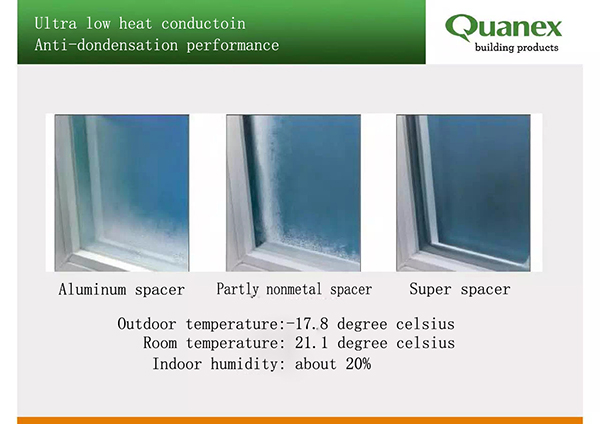

Heat conduction value of Super spacer in only 0.168W/m2·K, which is 1/950 of aluminum spacer, 1/85 of stainless steel spacer. The K value of super spacer insulated glass unit can be reduced 0.6-0.8W/m2·K than that of aluminum spacer type insulated glass panels.
So for construction, in winter, it can keep your home warm and in summer, keep your home cool. For refrigeration cabinets, it can block the outside hot air in and keep the cold air inside of the cabinets to get excellent energy-saving purpose.

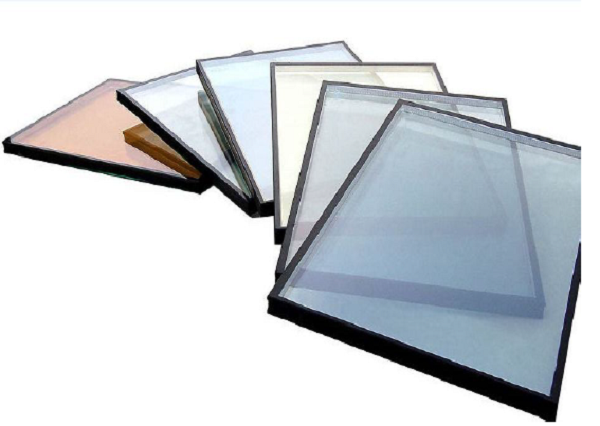

insulating galss panel with warm edge spacer
